BM140-141-BLIND FLANGES



Class-150 & Class-300

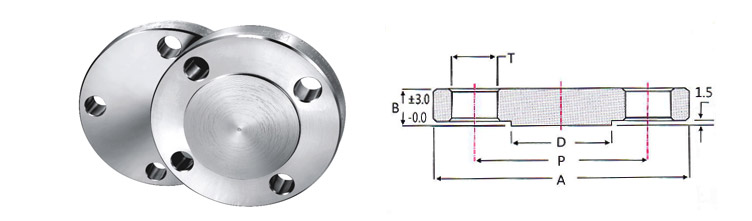

Blind Flanges Forged Fittings


  • Designed as per ASME standards.
  • CNC machined, VMC Drilled.
  • High quality antirust oil coating.
  • Graded forging to ensure crack free installation.

 B&M-140 Class150
N.Bore

A

D

B

 P T Holes
15 88.90 35.0 11.18 60.3 15.75 4
20 98.55 43.0 12.7 69.8 15.75 4
25 107.95 51. 14.22 79.4 15.75 4
32 117.34 6.5 15.75 88.9 15.75 4
40 127.0 73.2 17.53 98.4 15.75 4
50 152.4 92.0 19.05 120.6 19.05 4
65 177.8 104.6 22.35 139.7 19.05 4
80 190.5 127.0 23.88 152.4 19.05 4
90 215.9 139.7 23.88 177.8 19.05 8
100 228.6 157.2 23.88 190.5 19.05 8
125 254.0 185.7 23.88 215.9 22.35 8
150 279.4 216.0 25.4 241.3 22.35 8
200 342.9 269.8 28.45 288.4 22.35 8
250 406.4 324.0 30.23 362 25.40 12
300 482.6 381.0 34.75 431.8 25.40 12


 B&M-141 Class300
N.Bore

A

D

B

 P T Holes
15 95.25 35.0 14.22 67.7 15.75 4
20 117.35 43.0 15.75 82.6 15.75 4
25 123.95 51. 17.53 88.9 15.75 4
32 133.35 6.5 19.05 98.4 15.75 4
40 155.45 73.2 20.57 114.3 15.75 4
50 165.10 92.0 22.35 127.0 19.05 8
65 190.50 104.6 25.40 149.2 19.05 8
80 209.55 127.0 28.45 168.3 19.05 8
90 228.60 139.7 30.23 184.2 19.05 8
100 254.00 157.2 31.75 200.0 19.05 8
125 279.40 185.7 35.05 235.0 22.35 12
150 317.50 216.0 36.58 269.9 22.35 12
200 381.00 269.8 41.05 330.2 22.35 16
250 444.50 324.0 47.75 387.4 25.40 16
300 520.70 381.0 50.80 450.8 25.40 16
