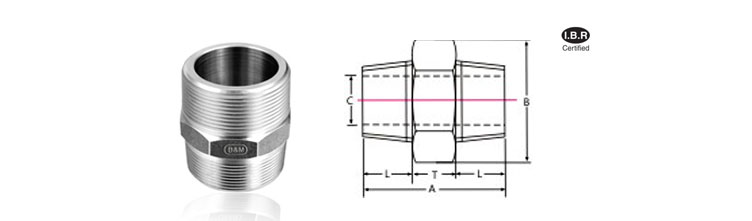

1000 LBS (180° Male, Equal)
| Nominal Size | A (min.) | B | L(min.) | T |
| 6 | 25 | 13.1 | 9.5 | 6 |
| 8 | 31 | 15.5 | 12.5 | 6 |
| 10 | 33 | 17.9 | 12.5 | 8 |
| 15 | 43 | 23.0 | 17.5 | 8 |
| 20 | 48 | 27.8 | 19 | 10 |
| 25 | 52 | 35.3 | 21 | 10 |
| 32 | 59 | 47.2 | 24 | 11 |
| 40 | 61 | 52.0 | 24 | 13 |
| 50 | 68 | 61.1 | 27 | 14 |
Nickel Alloy
ASME SA 182 F 304, 304L, 316, 316L, 316 LN
Carbon Steel
ASTM / ASME A 105.
( Alloy Steeld connections for critical applications. )
